Wiring

I'm hoping by end of christmas break at the latest to have the EV moving on it's own power even if on ony 7 batts. Progress so far.

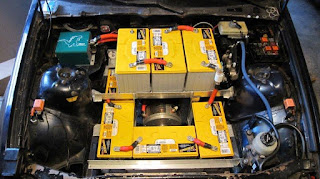

Most of the high voltage lines are done. I need to make 3 more. Still haven't finished the return lines on the PS so that's left and then wire up the Hair ball. See how much longer that takes.

Here are a few more part#'s and stores I bought from.
Contactor:
Kilovac EV200 Contactor. Purchased from E-bay

Crimping tool: Lengo Swedg-on Tool Model 840 From E-bay

Fuses and Heat shrink: purchased from EV Source LLC www.evsource.com
1ft Length, 1in Normal Adhesive Lined Heat Shrink Tubing, Red
Item# 600-HSA-001-RE-N 3ft

1ft Length, 1in Normal Adhesive Lined Heat Shrink Tubing, Black
Item# 600-HSA-001-BL-N 3ft

500A 300VDC fuse, Up to 1000A Controller up to 276V Nominal System Voltage
Item# 201-A30QS500-4 qty 2
